IFM O1D100 Photoelectric Laser Distance Sensor New Original Packaging
IFM O1D100 Photoelectric Laser Distance Sensor New Original Packaging

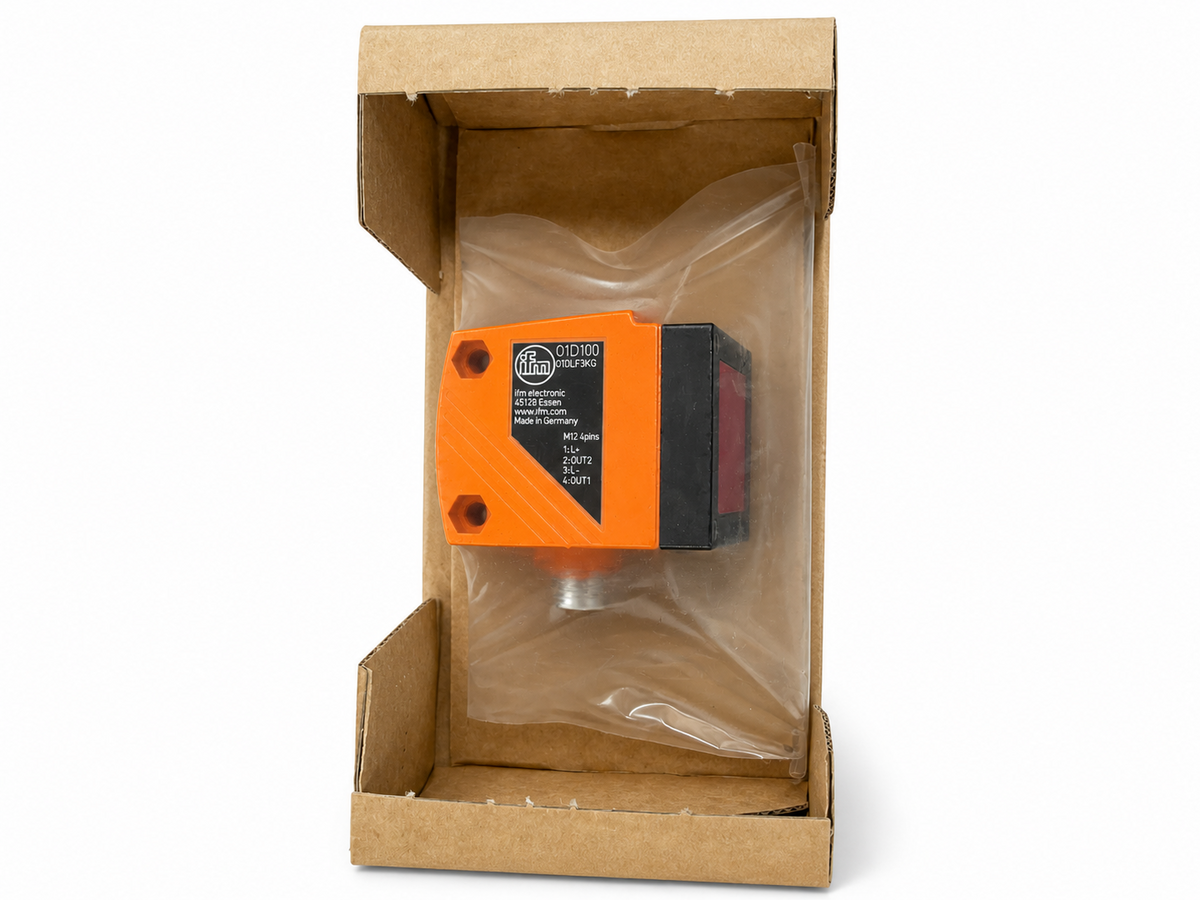

IFM O1D100 photoelectric laser distance sensor for industrial and factory automation applications. New and unused in original manufacturer packaging.
One purchase includes 1 x O1D100 unit. Available quantity represents individually purchasable units, not a job lot. UK delivery only.
Manufacturer specifications
- Manufacturer / part number: IFM / O1D100 (O1DLF3KG/IO-LINK)
- Measuring range: 0.2–10 m, specified for white paper (200 x 200 mm, 90% remission); performance varies with target and conditions
- Supply: 18–30 V DC; current consumption <150 mA
- Outputs: two configurable PNP switching outputs; one output can alternatively be configured as 4–20 mA or 0–10 V analogue output
- Interface: IO-Link 1.1, COM2 (38.4 kBaud)
- Connection: 5-pin A-coded M12 connector
- Protection / ambient temperature: IP67 / −10 to +60 °C
- Housing dimensions: 59 x 42 x 52 mm; 4-digit display
- Laser protection class: Class 2; do not stare into beam
Please check the IFM O1D100 datasheet and your equipment's electrical and mechanical requirements for compatibility before purchase. The specifications above describe the manufacturer's model; the stock condition is stated separately above.
Held and dispatched by Surplify
Check this listing for condition, pack quantity and any collection arrangements. Need another part or a different quantity? Send us your requirements.
